The FC-906 Fluorescence Multi-LED Illuminator is a flagship 6-wavelength-switchable light source designed for researchers who demand the highest level of precision and flexibility. By delivering intense, uniform illumination across the field of view, it ensures optimal excitation of even the weakest fluorescent signals, providing the stability and "Instant On/Off" performance required for reproducible results.

This system offers unmatched Broad Spectral Coverage with six independently controllable LED wavelengths: 385nm, 430nm, 470nm, 560nm, 635nm and 730nm. This extensive range allows for the precise excitation of a vast array of fluorophores from common dyes like DAPI and FITC to advanced far-red probes without the need for manual filter changes.

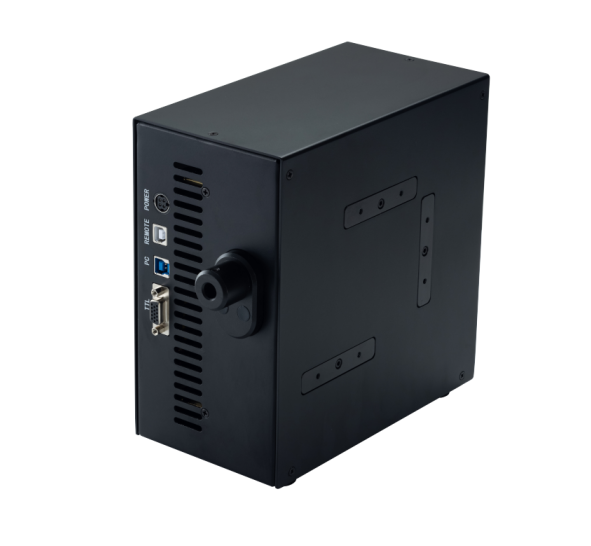

The FC-906 features a Liquid Light Guide (3mm) for efficient light delivery and supports Flexible EX Filter Installation (compatible with 25 mm diameter filters). For advanced automation, it includes USB and 6-channel TTL Control interfaces, while a Control Pod (Remote Handset) is included for convenient manual operation and intensity monitoring.

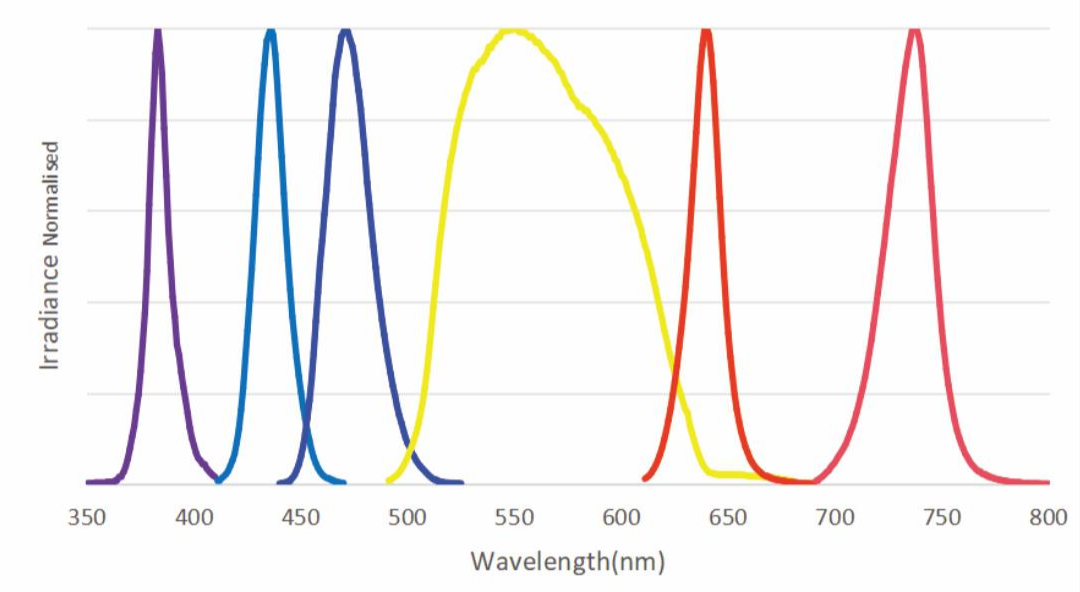

FC906 Spectral Output

Technical Specifications
