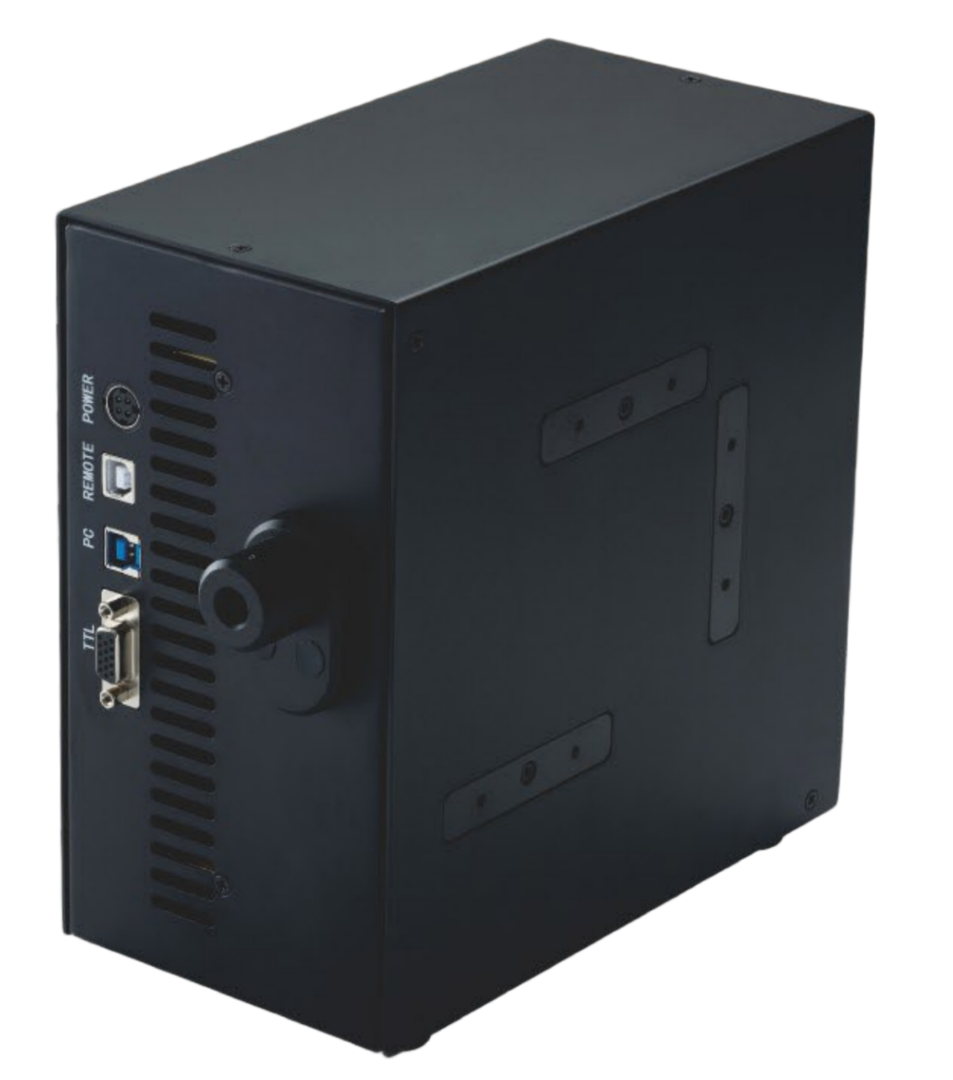

The FC-FISH5 Fluorescence LED Illuminator is a specialized, high-performance light source specifically engineered for FISH-Optimized Imaging. By providing five precisely defined excitation wavelengths, it enables efficient multi-color imaging with clear spectral separation and minimal cross-talk, which is essential for Fluorescence In Situ Hybridization (FISH) applications involving multiple probes.

The system features Five LED peaks tailored to match key fluorophores: DAPI (385 nm), CFP (435 nm), GFP/FITC (470 nm), YFP (555 nm) and RFP/TRITC (630 nm, Cy3/Cy5 compatible). Utilizing Liquid Light Guide Coupling, the FC-FISH5 ensures stable, uniform and Vibration-Free Illumination while offering flexible placement within the laboratory.

For advanced workflow management, the unit includes Integrated White Light Control via the provided control pod, allowing for real-time observation adjustments. It also supports External TTL trigger integration (five individual channel triggers plus one global trigger) and PC control via USB for precise synchronization with automated imaging systems.

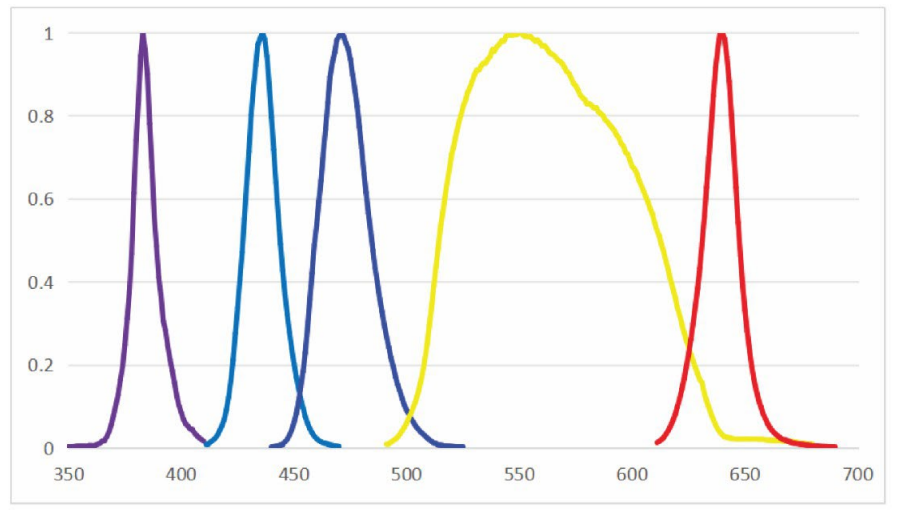

FC-FISH5 Spectral Output

Technical Specifications
