The BioHD-EPS is a high-performance monochrome CMOS camera specifically engineered for demanding scientific imaging applications where maximum photon collection is critical. Unlike color cameras, the BioHD-EPS lacks a color filter array, allowing more photons to reach each pixel. This significantly enhances sensitivity and signal strength, making it an ideal choice for low-light and fluorescence imaging.
Equipped with High Dynamic Range (HDR) capability, the camera captures both low and high-intensity signals within a single image, preserving fine details even in challenging lighting conditions. The monochrome sensor provides a Broad Spectral Response (400nm – 1000nm), enabling efficient detection across both visible and near-infrared wavelengths. Combined with a large 5.86µm X 5.86µm pixel size, the BioHD-EPS maximizes signal-to-noise ratio (SNR) for superior image quality.
Designed for seamless integration, it features a Reliable USB 3.0 interface and is entirely USB-powered, ensuring a streamlined and vibration-free microscopy setup.

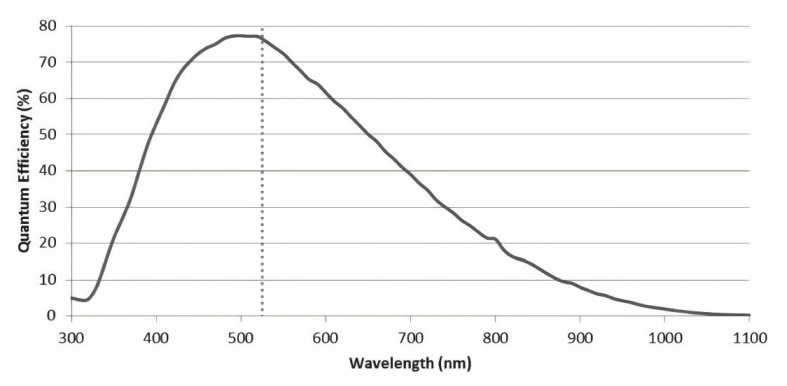

BioHD- EPS Spectral Output
Photos taken by EPS
Technical Specifications
| Sensor Model | Sony IMX 174 |
| Resolution | 1920 x 1200 |
| Sensor Size | 1/1.2" |
| Pixel Size | 5.86 µm x 5.86 µm |
| Frame Rate | 30 fps @ 1920×1200 |
| Bit Depth | 8-bit / 12-bit |
| Data Interface | USB 3.0 |
| Spectral Response | 400 nm ~ 1000 nm |
| Binning | 1×1, 2×2, 3×3 |
| Cooling Method | Natural convection
(passive cooling via large-area metal surface) |
| Power Supply | USB-powered |
